TECHNICAL SPECIFICATIONS

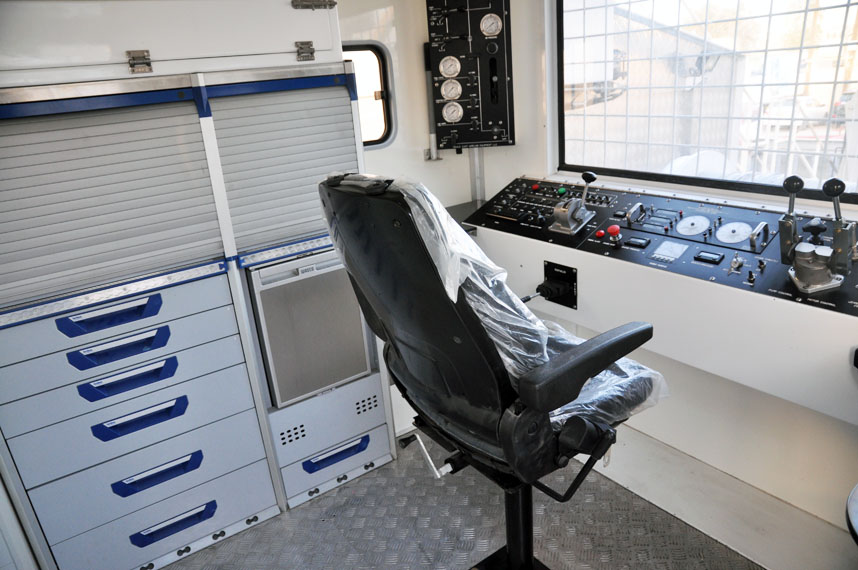

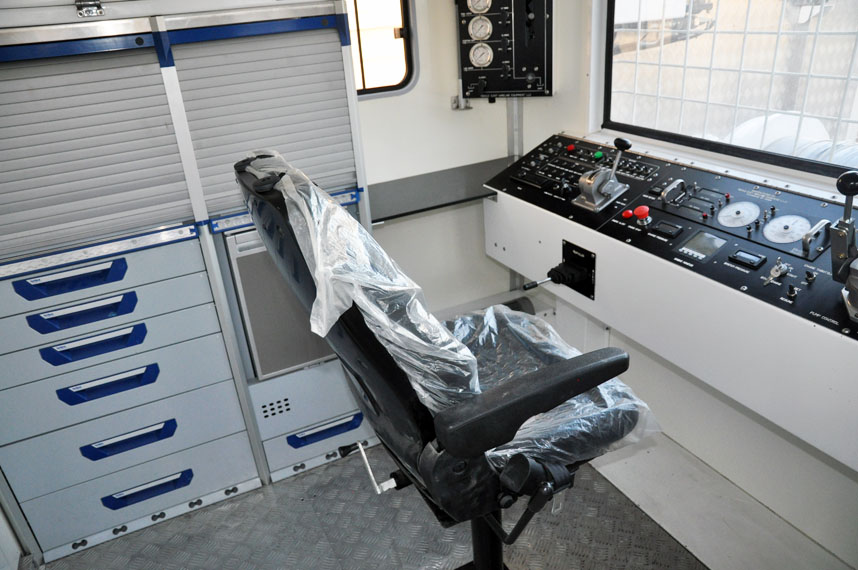

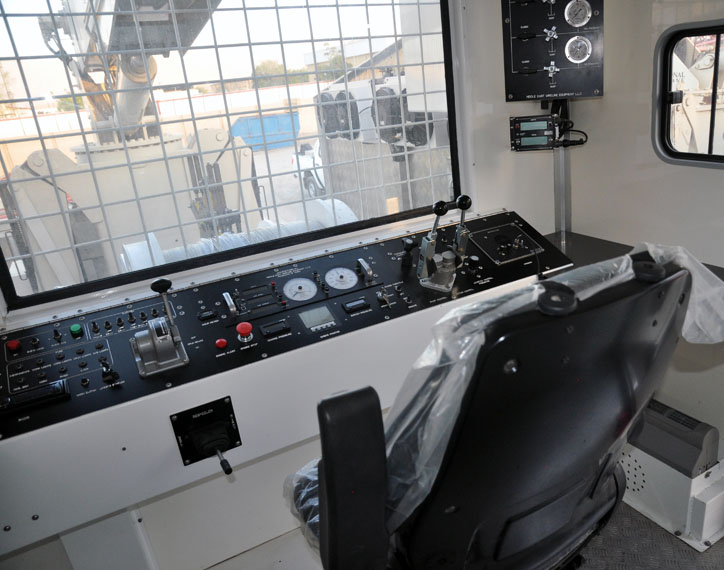

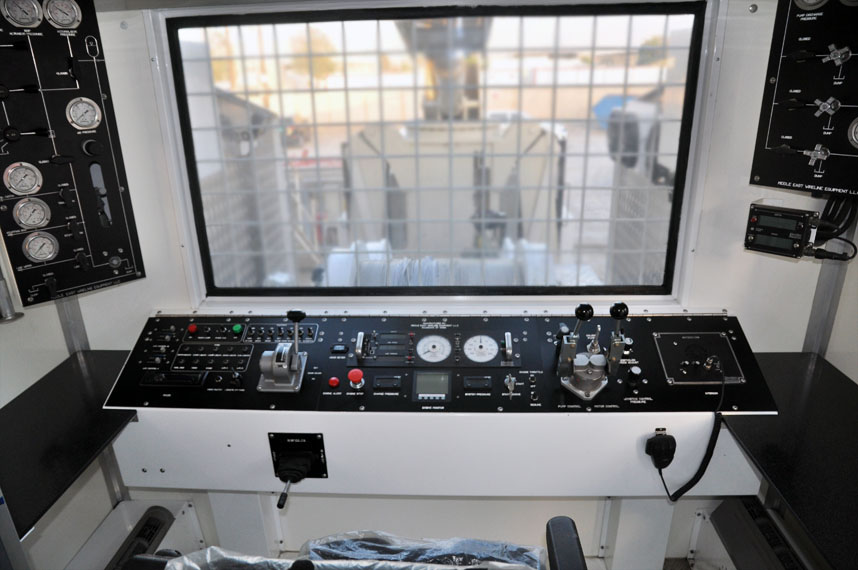

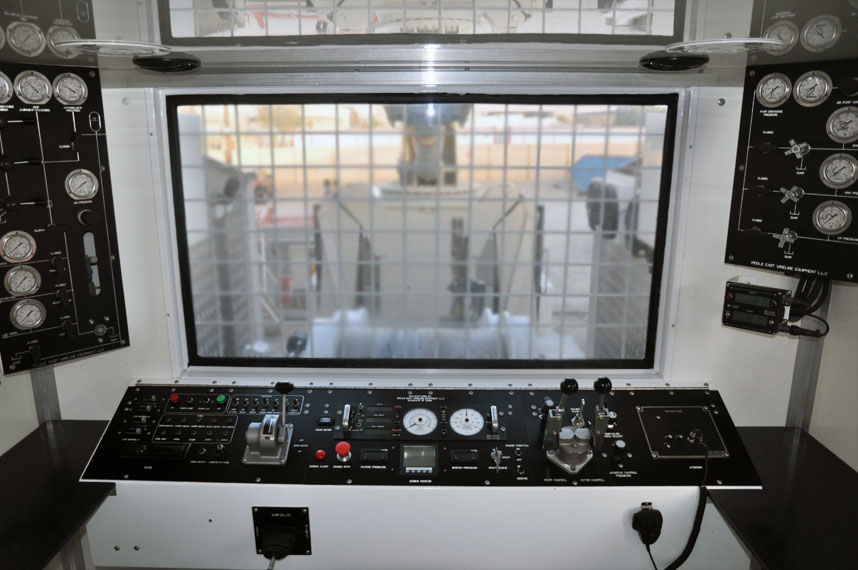

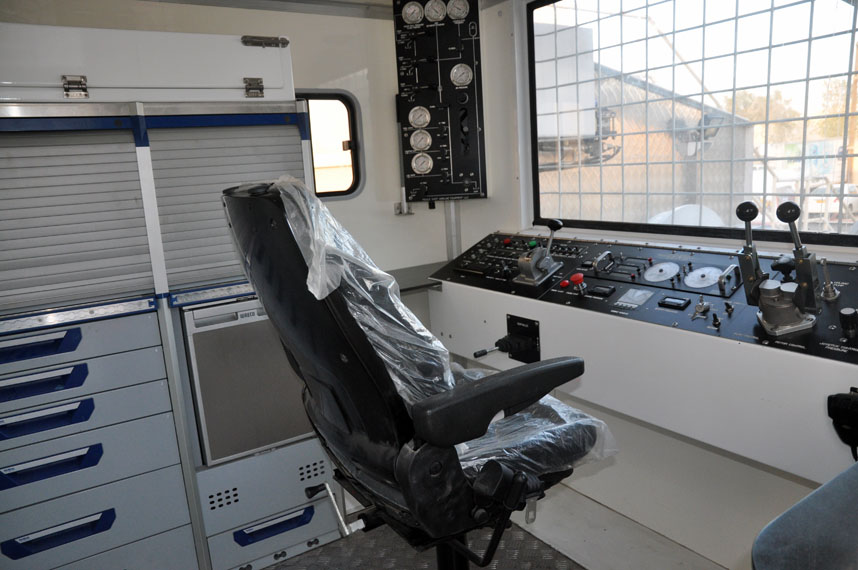

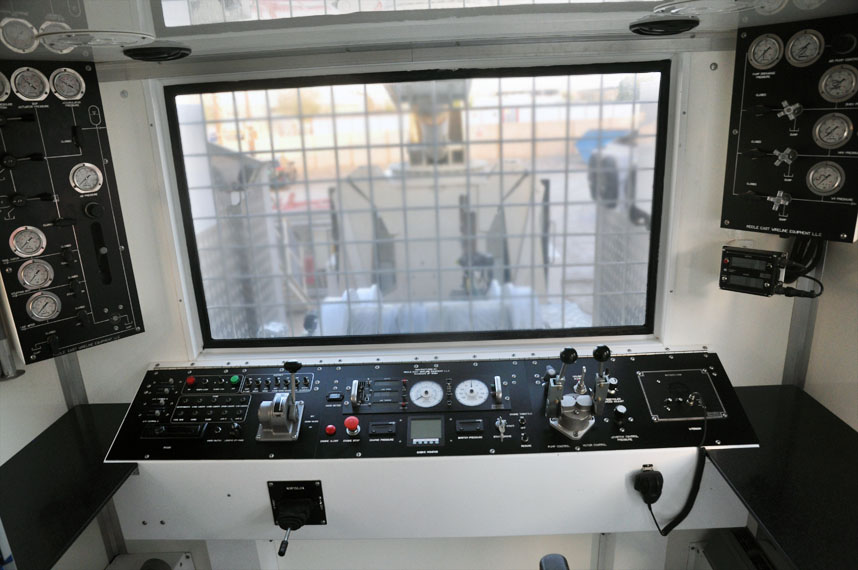

   CABIN

   High Insulated, Truck engine control from cabin

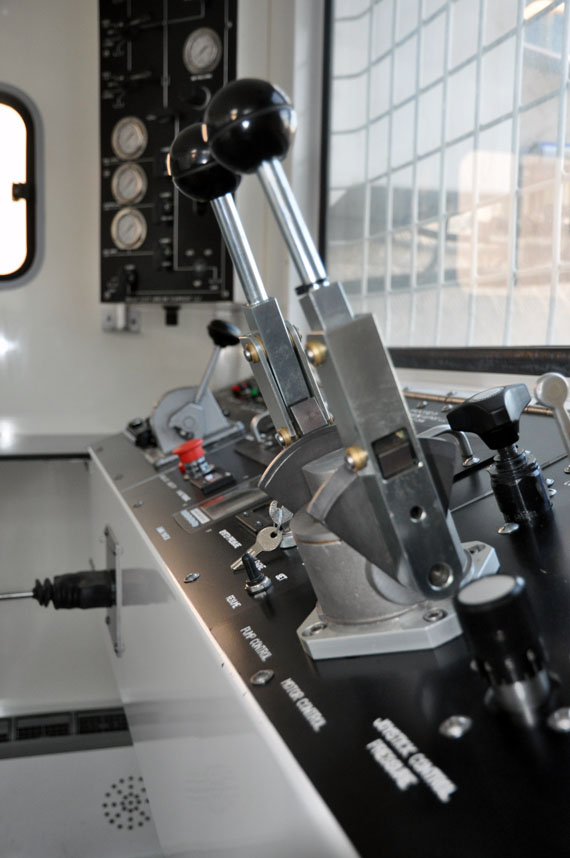

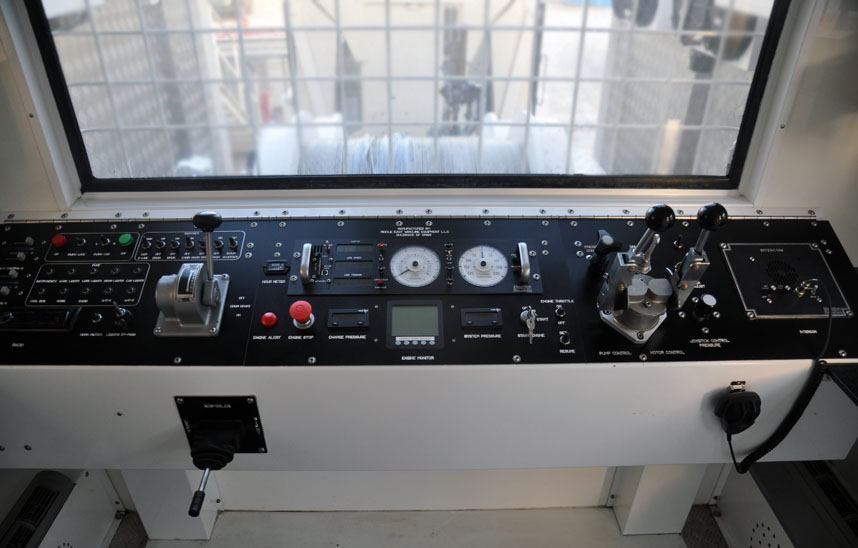

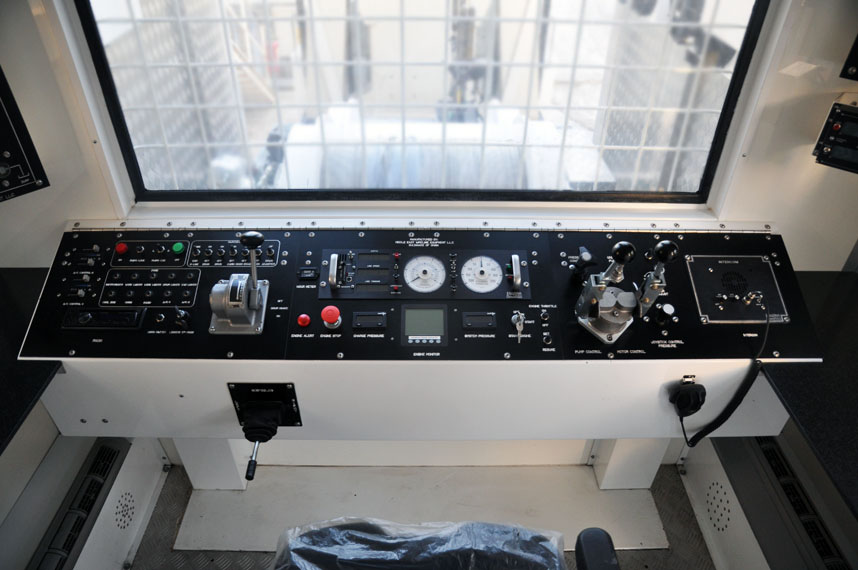

   Digital display engine monitor, Electronic joystick controls hydraulic pump and motor

   Two (2) hydraulic drive Air condition

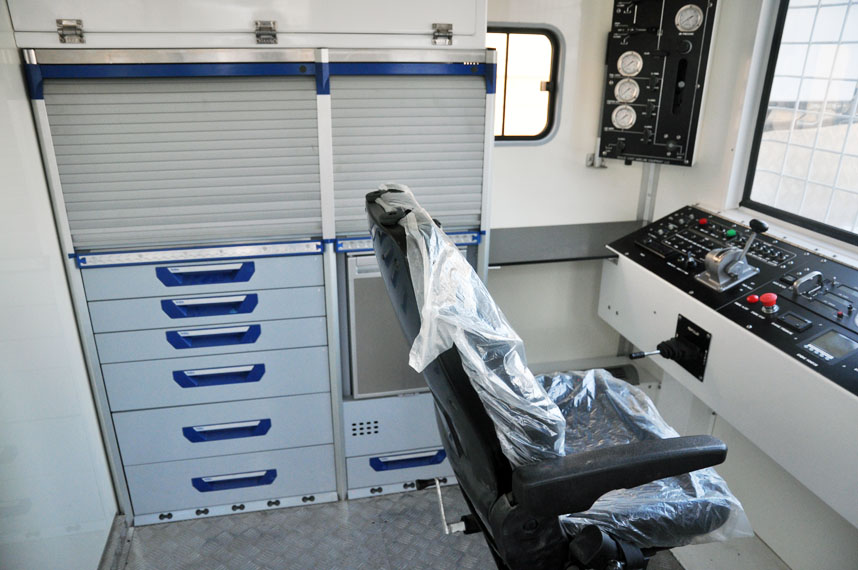

   Intercom system, Cupboard storage

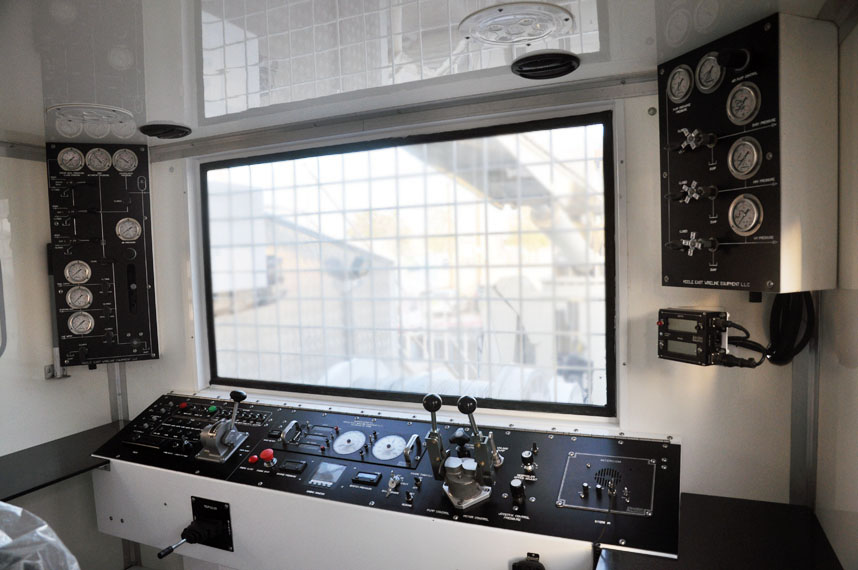

   BOP Control Reeling Drum 1 & 2 and safety valve control panel

   BOP Shear Seal Pressure, Tool Catch, Stuffing Box, Line Wiper

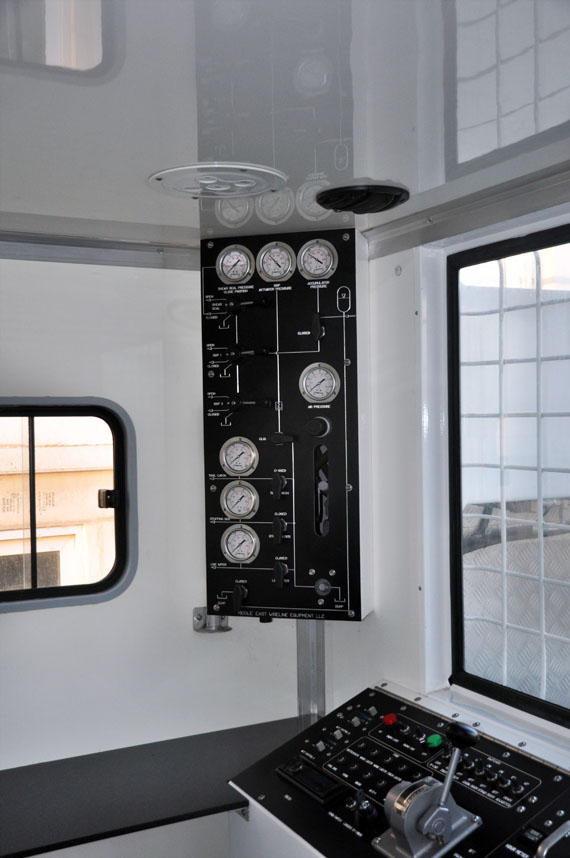

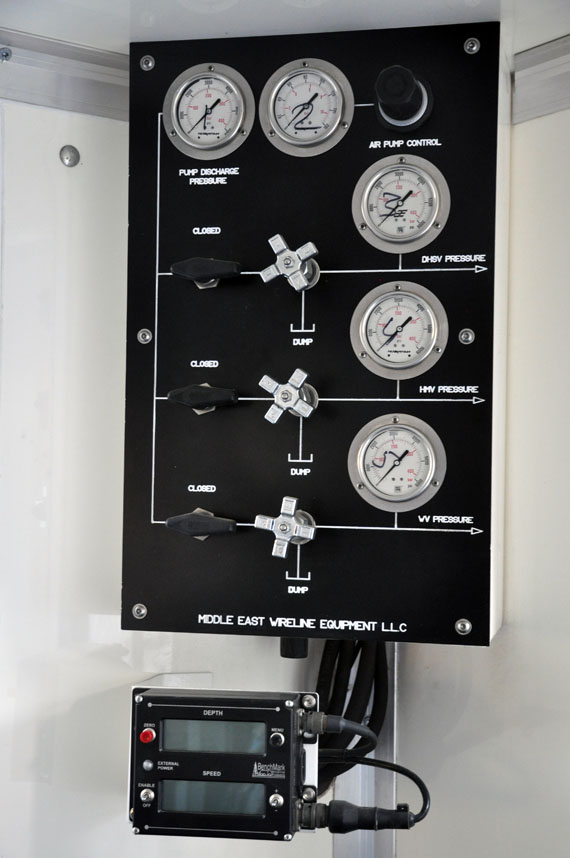

   Safety valve panel controls Down hole Safety Valve (DHSV)

   Hydraulic Master Valve (HMV), Wing Valve (WV)

   Air driven hydraulic pump and back up hand pump

   Accumulator 20l, Two(2) Hydraulic Tanks

   Hose reeling drum air driven (fixed behind the truck)

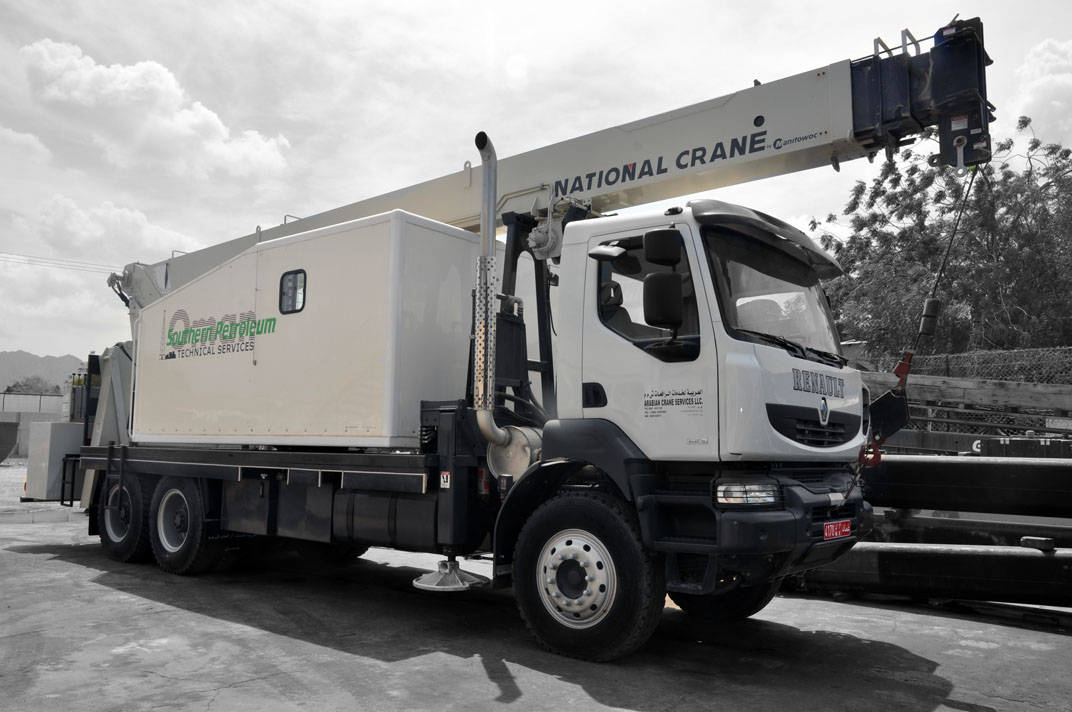

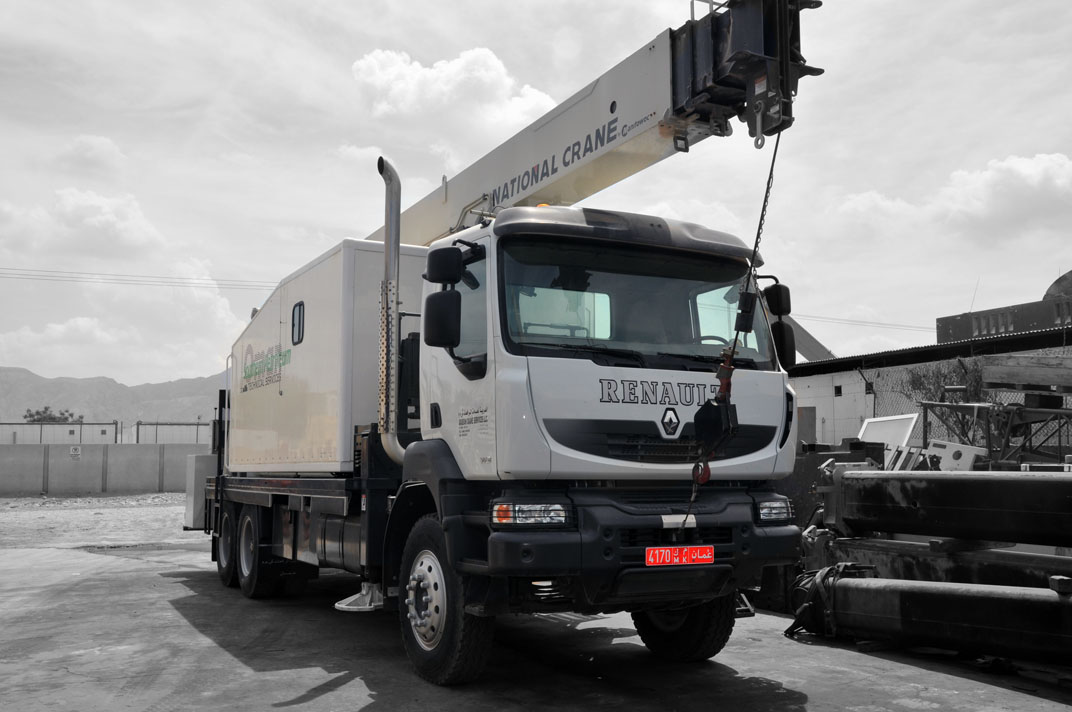

   TRUCK

   RENAULT Kerax 380.35, 6x4

   Gvw kg, 40,000kg

   Engine DXI 11;279kw(379hp)

   Gearbox ZF16S

   Double Output Power Take-Off

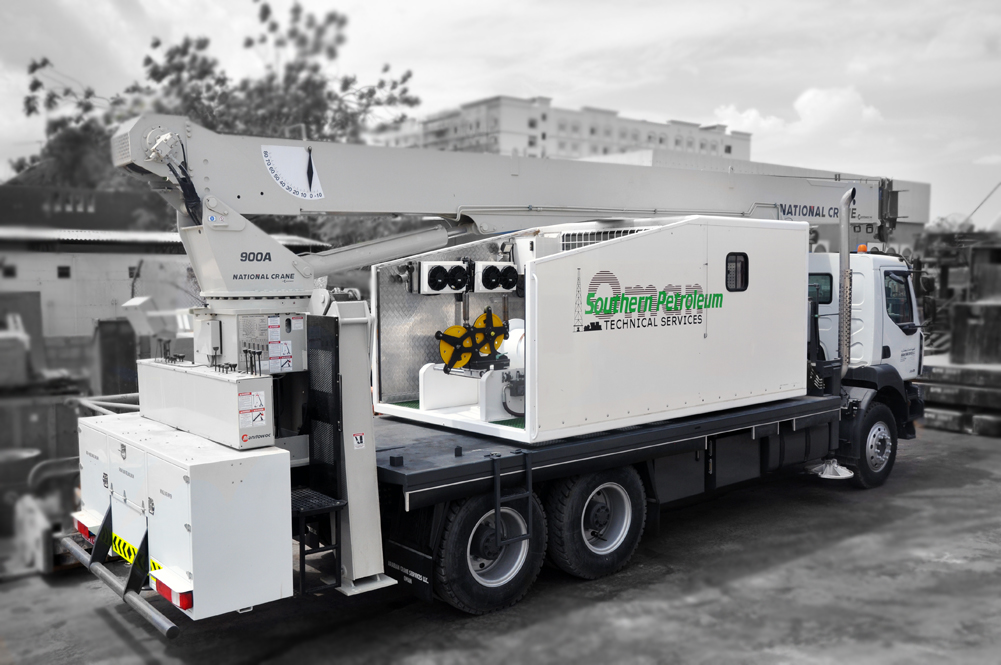

   CRANE

   National Crane 9125WL (900A series) rear mounted to maximize rig up height and capacity,

   125ft (38.1m) boom Length

   Maximum Load Capacity 23, 550kg

   3,300 kg (3.3ton) @ 38m Boom Length; 7.6m Radius

   Safe Load Indicator and Anti 2 Block

   3 Stage Gear Hydraulic Pump driven by Truck PTO

   Main and Auxiliary Winch

   Hydraulic oil cooler

   WIRELINE UNIT

   Carbon steel chassis, 180° rotation

   Rear bench removable with crane includes toolbox, wise and BOP storage

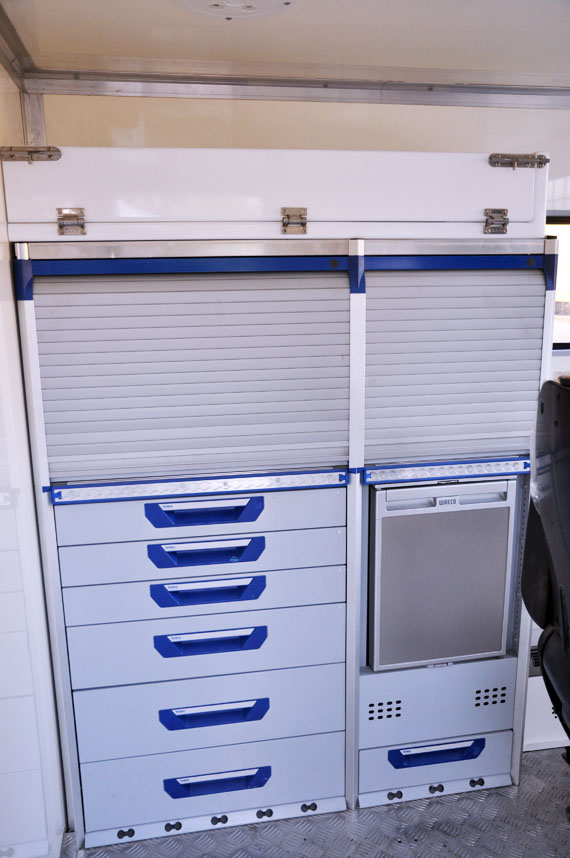

   Tool storage with airbag and drawer for small tools

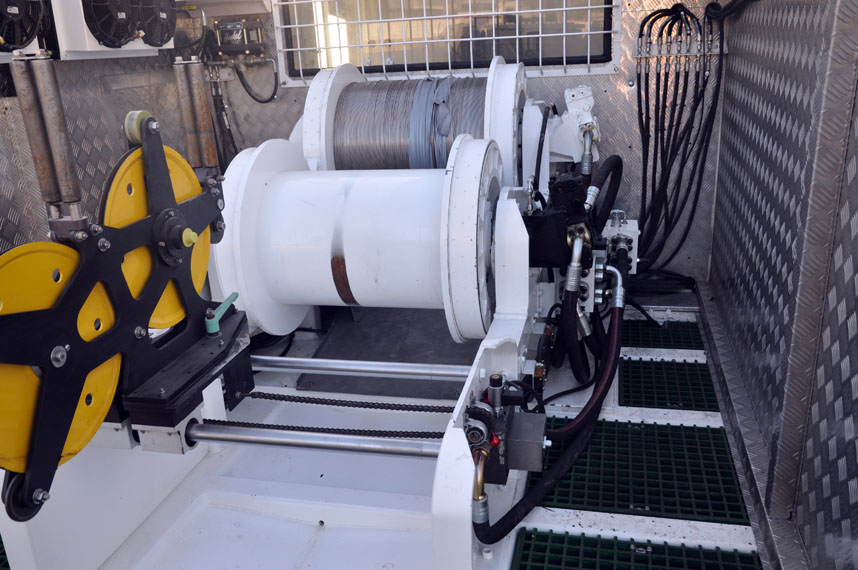

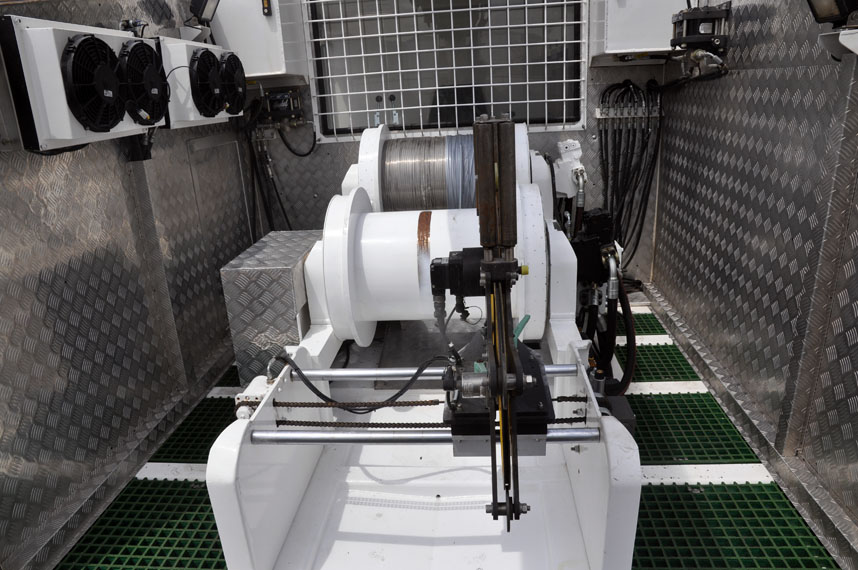

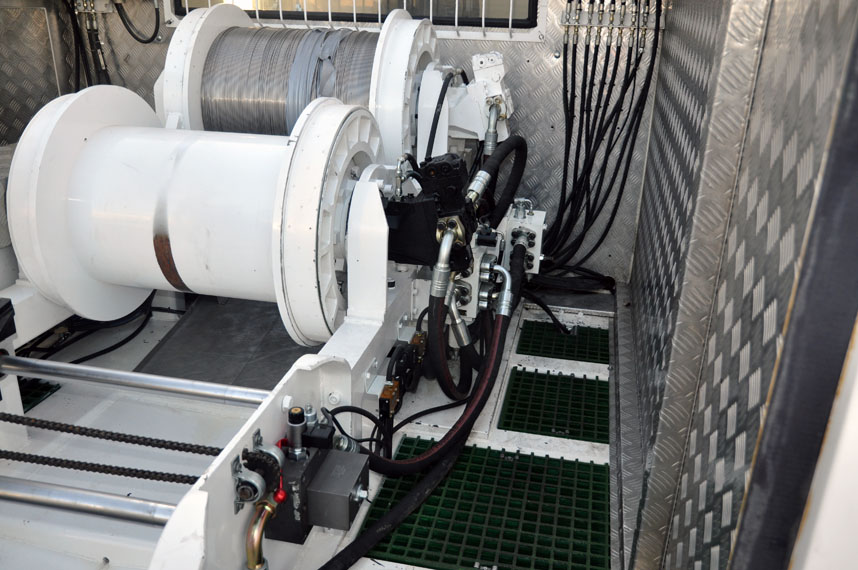

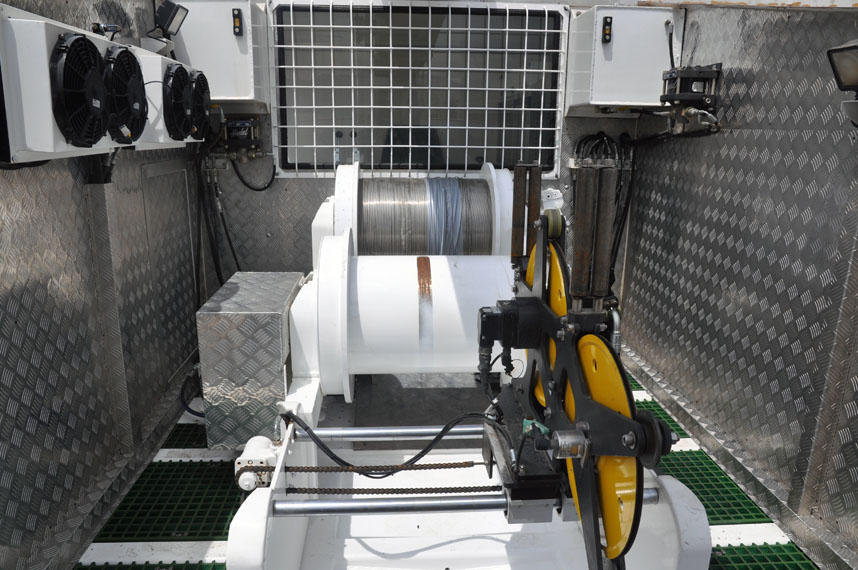

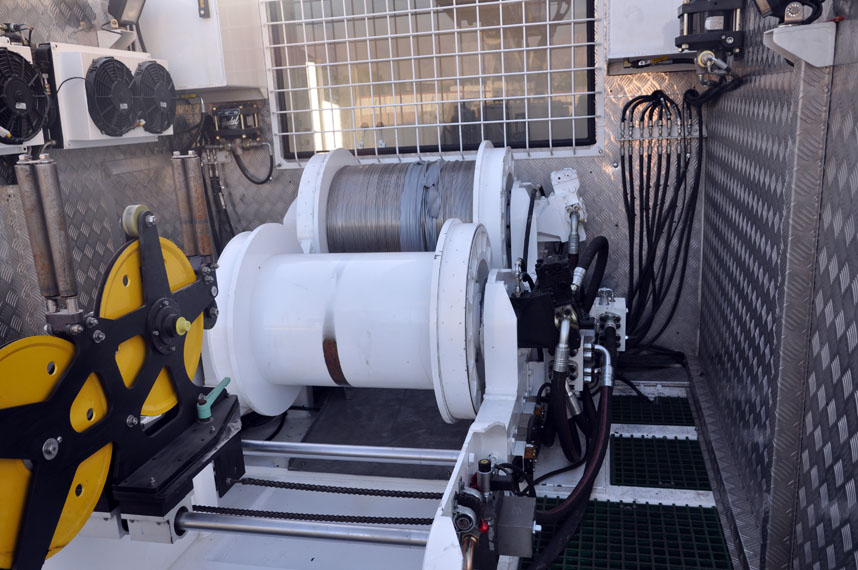

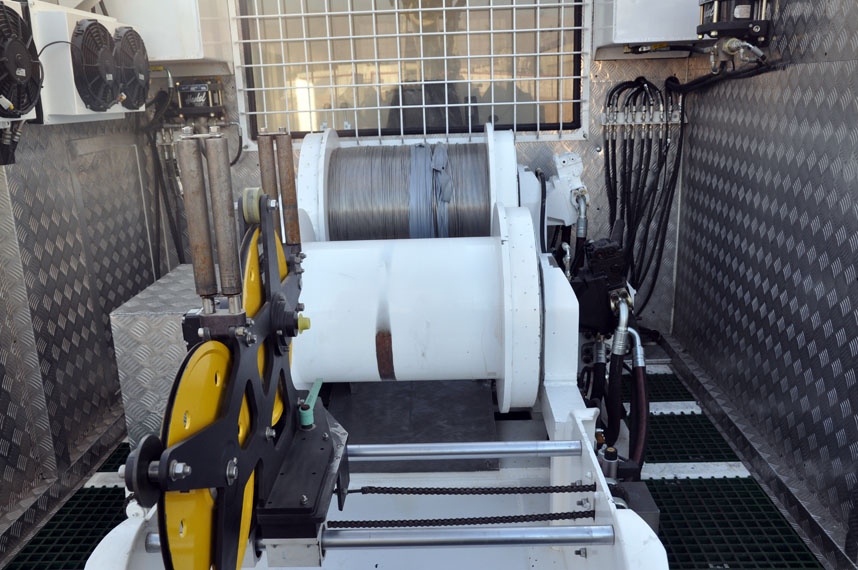

   WINCH

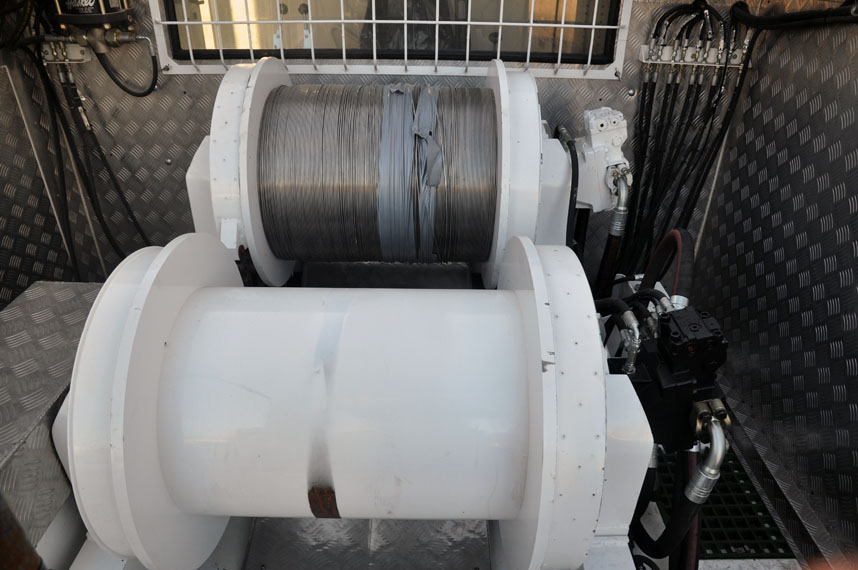

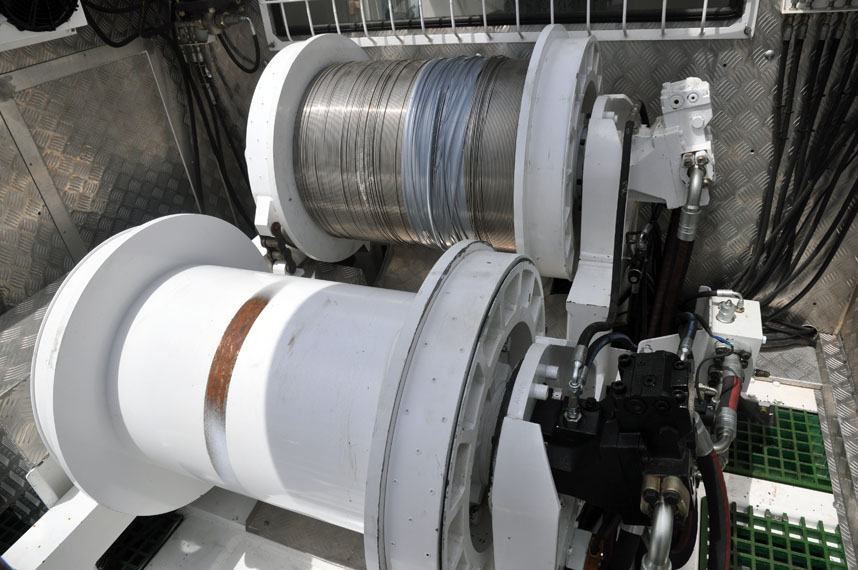

   2 Drum (0.108' and 0.125" carbon steel) direct drive

   HYDRAULIC

   Close loop control Hydraulic System
