TECHNICAL SPECIFICATIONS

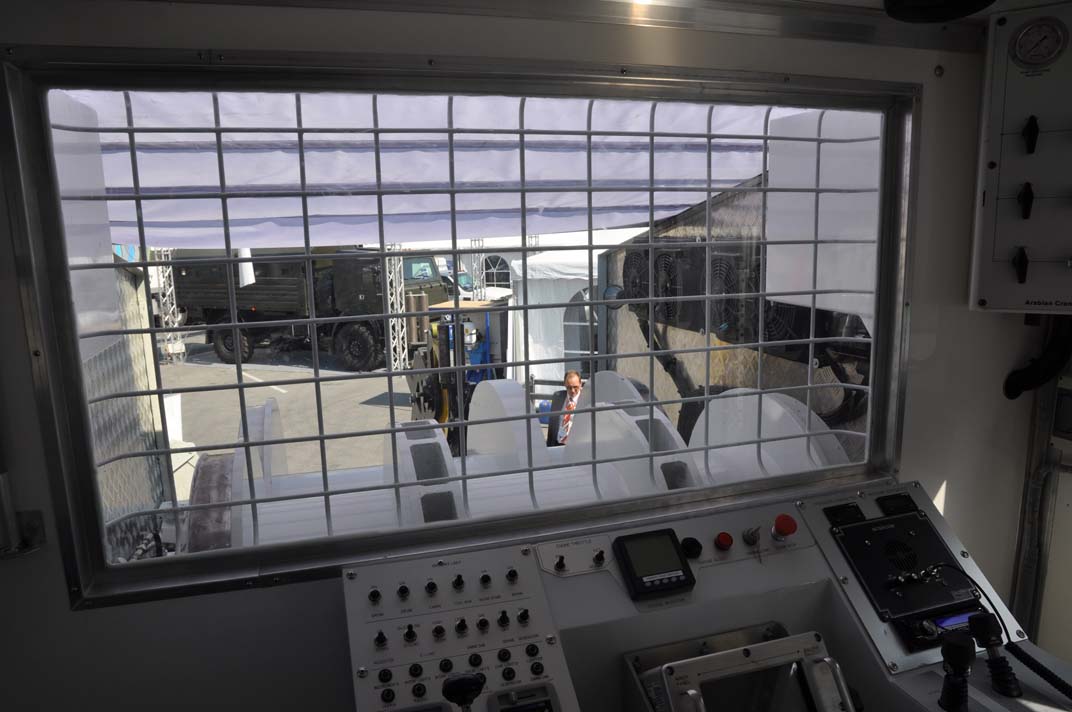

   CABIN

   High Insulated, Truck engine control from cabin

   Digital display engine monitor, Electronic joystick controls hydraulic pump and motor

   Two (2) hydraulic drive Air condition

   Intercom system, Cupboard storage, refrigerator

   BOP and safety valve control panel

   Air driven hydraulic pump and back up hand pump

   Accumulator 20l, Two(2) Hydraulic Tanks

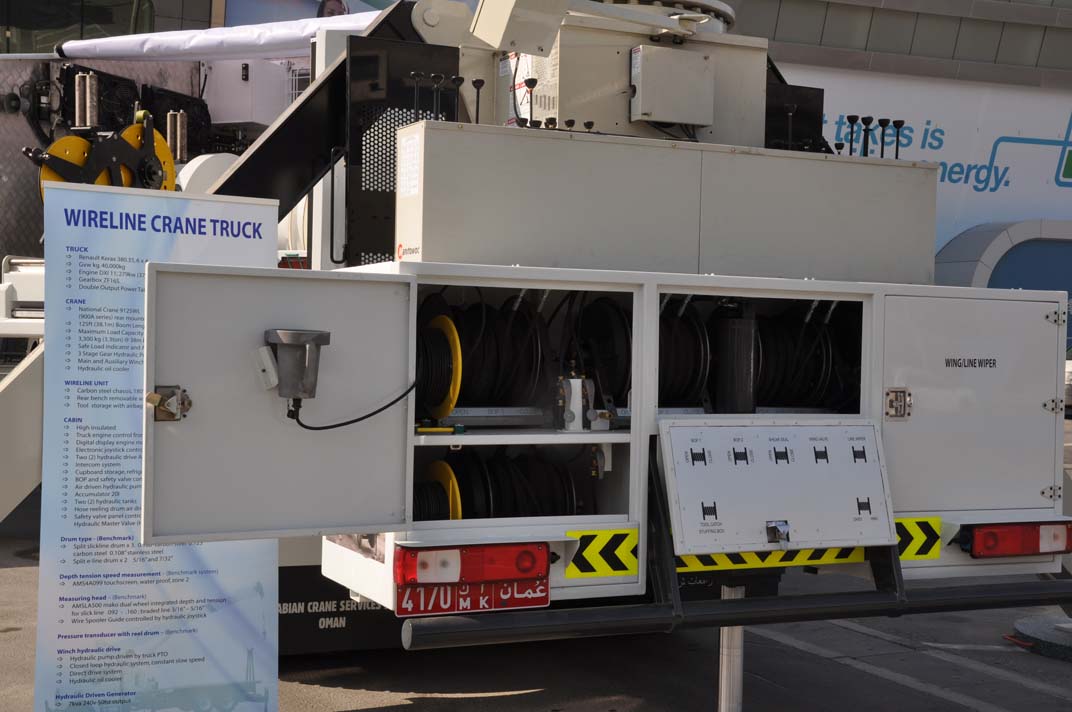

   Hose reeling drum air driven (fixed behind the truck)

   Safety valve panel controls Down hole Safety Valve (DHSV),

   Hydraulic Master Valve (HMV), Wing Valve (WV)

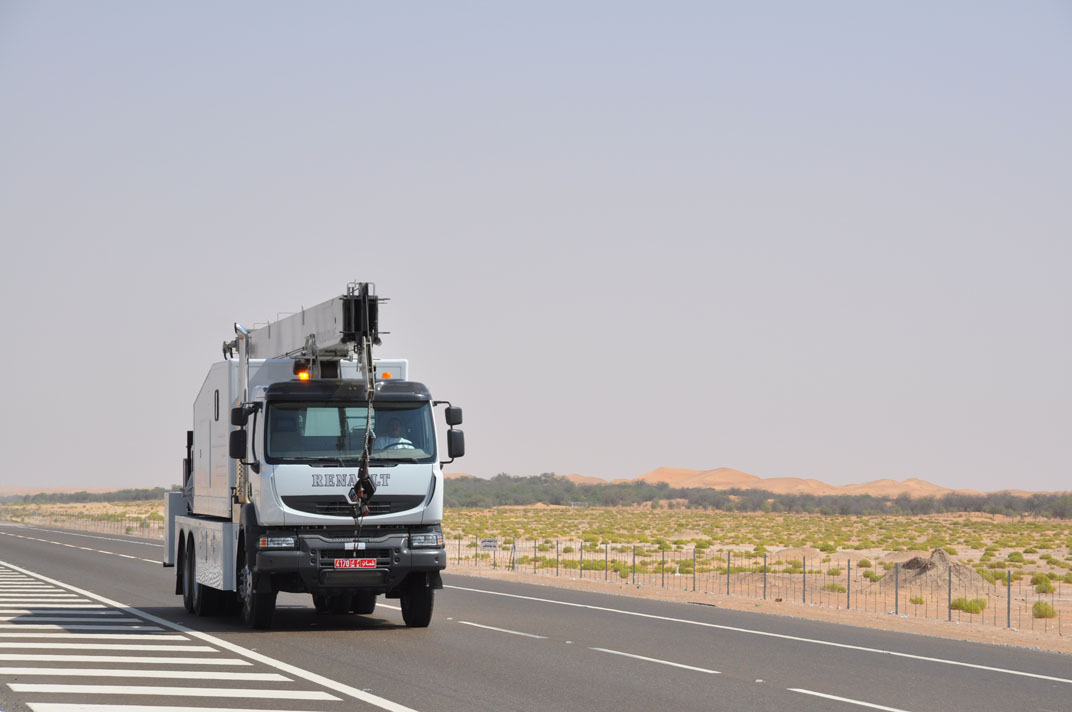

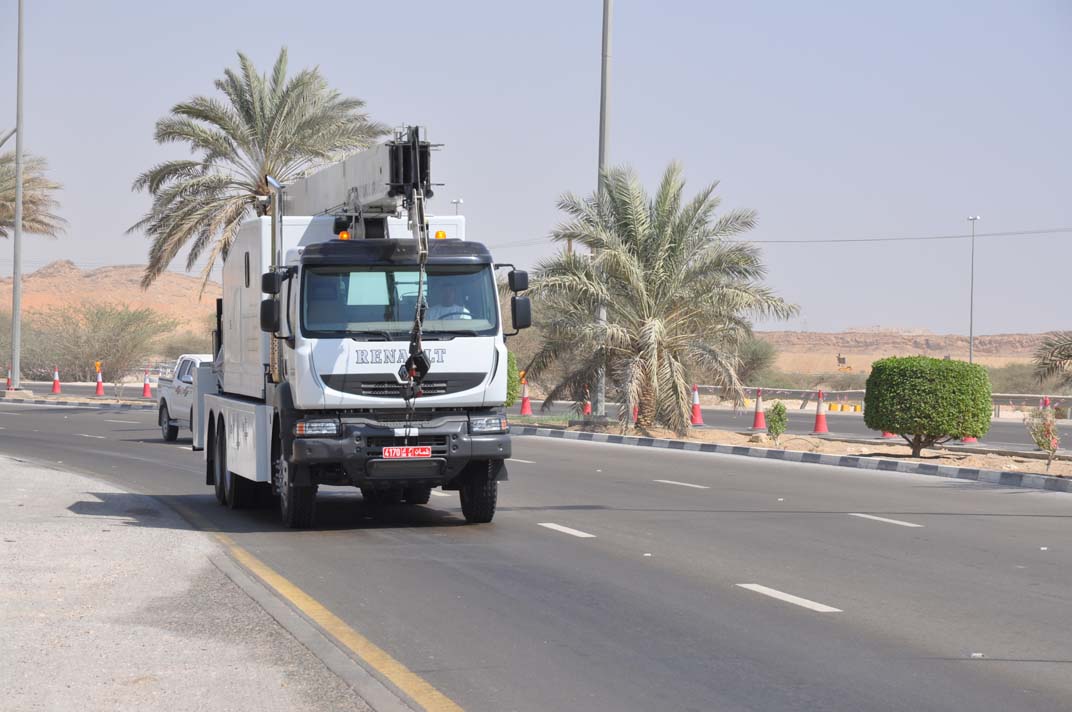

   TRUCK

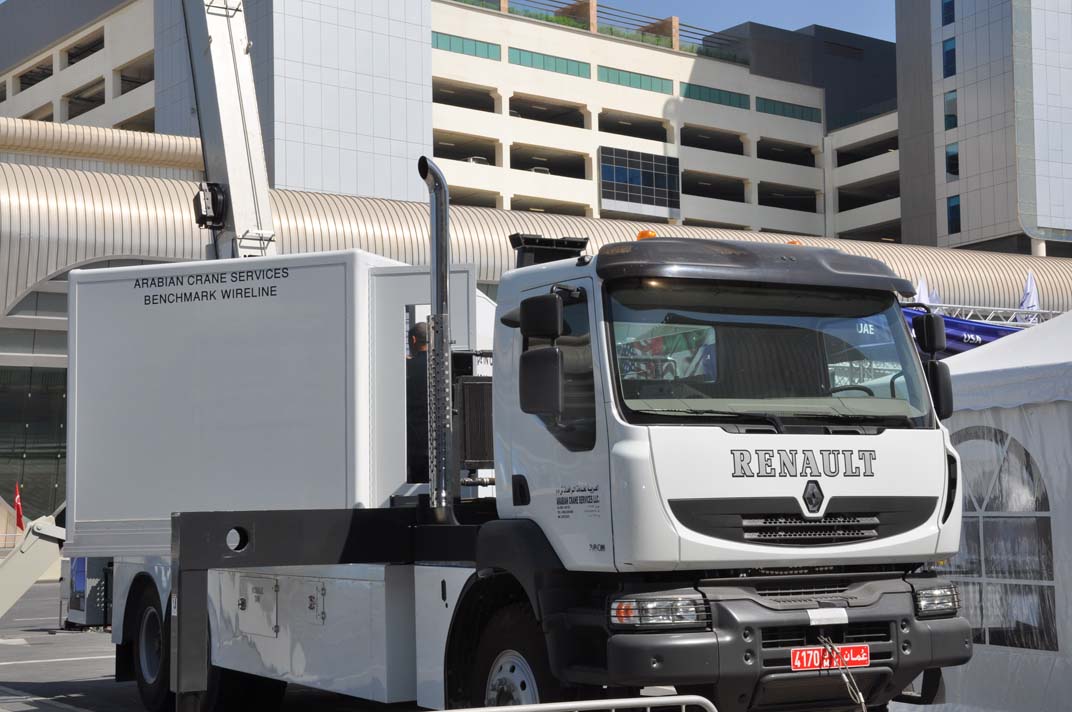

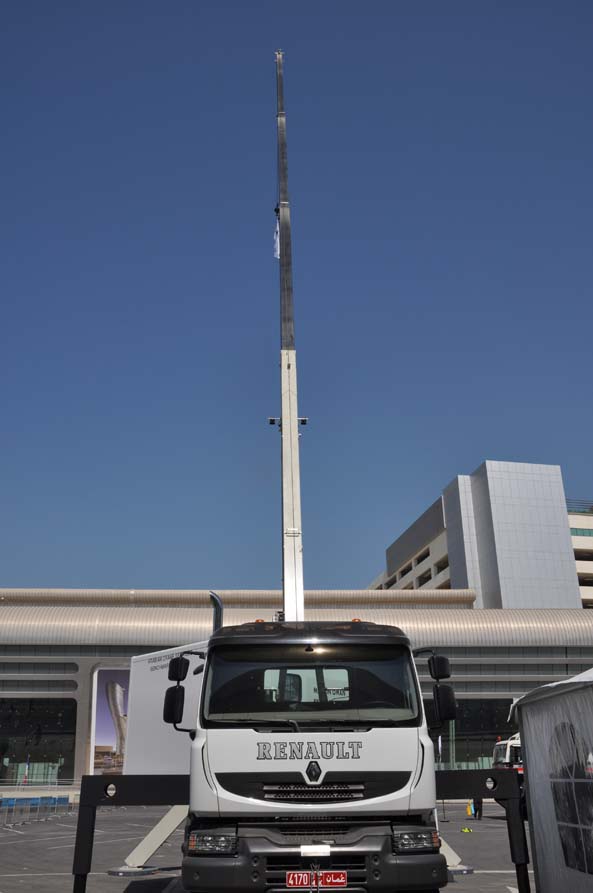

    RENAULT Kerax 380.35, 6x4

   Gvw kg, 40,000kg

   Engine DXI 11;279kw(379hp)

   Gearbox ZF16S

   Double Output Power Take-Off

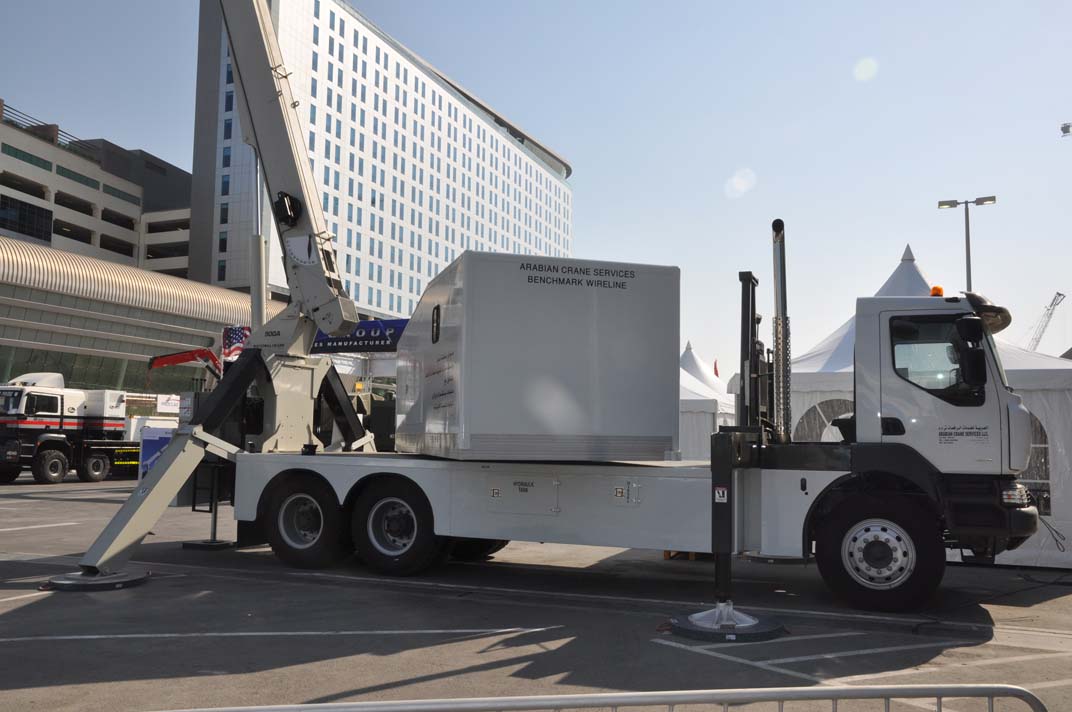

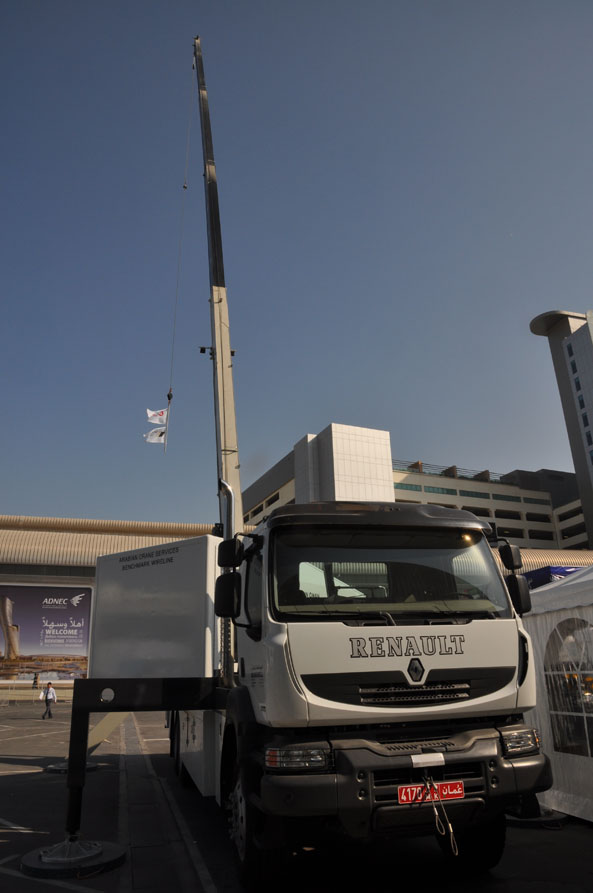

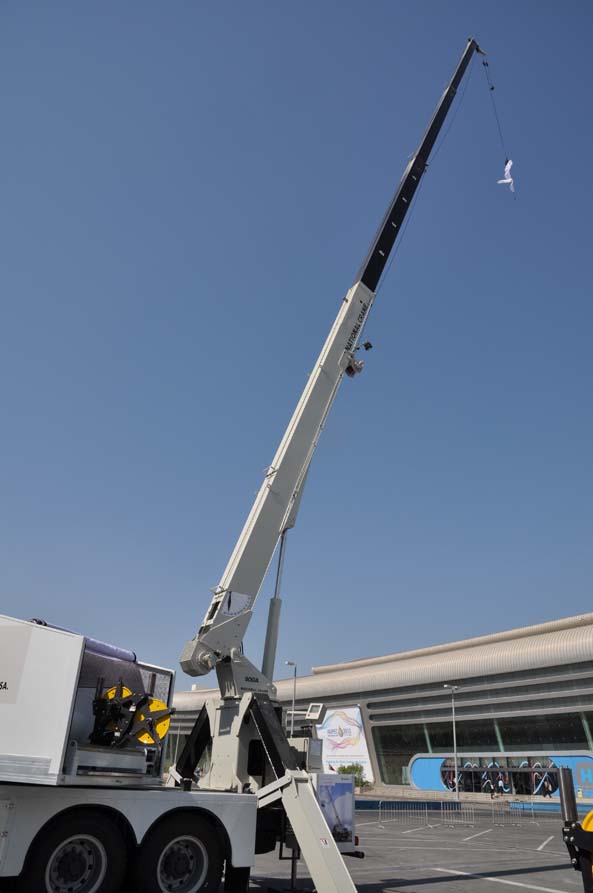

   CRANE

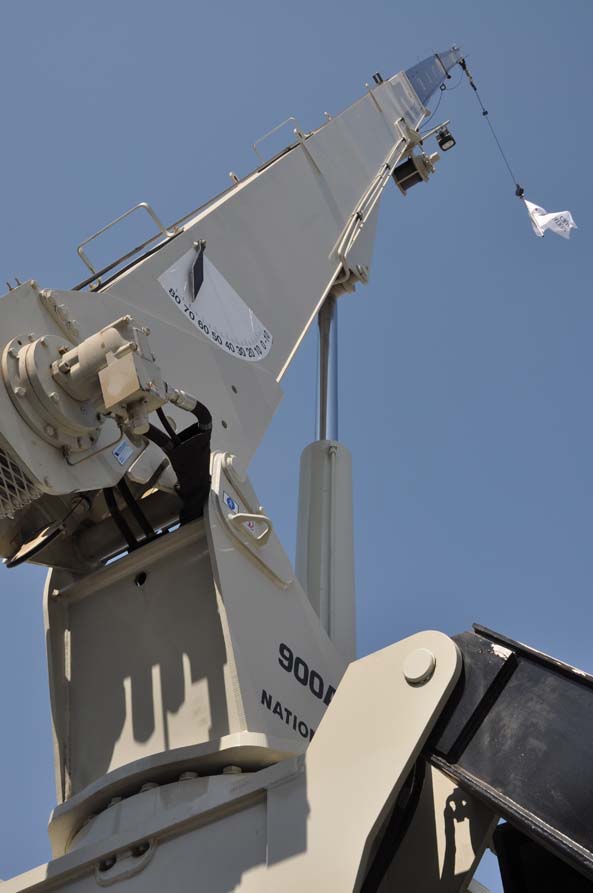

   National Crane 9125WL (900A series) rear mounted to maximize rig up height and capacity,

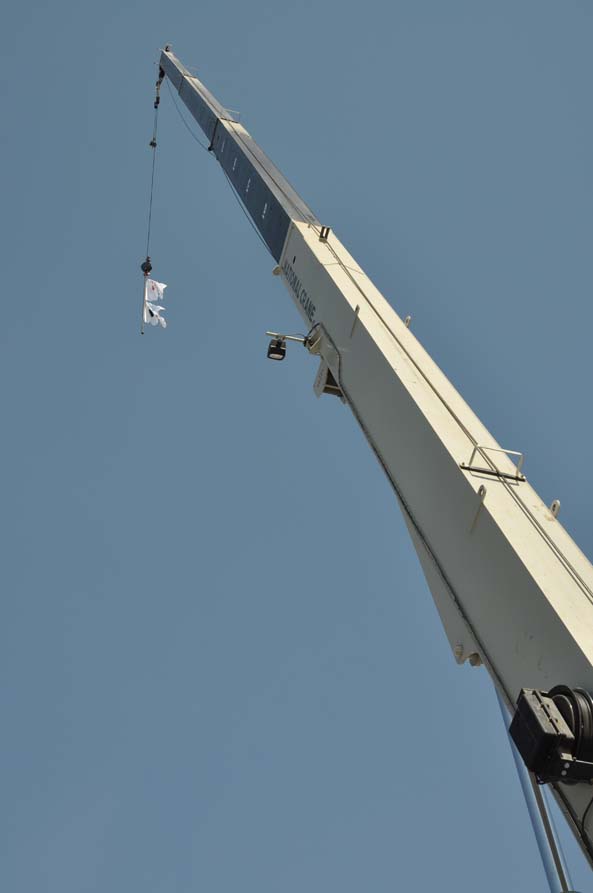

   125ft (38.1m) boom Length

   Maximum Load Capacity 23, 550kg

   3,300 kg (3.3ton) @ 38m Boom Length; 7.6m Radius

   Safe Load Indicator and Anti 2 Block

   3 Stage Gear Hydraulic Pump driven by Truck PTO

   Main and Auxiliary Winch

   Hydraulic oil cooler

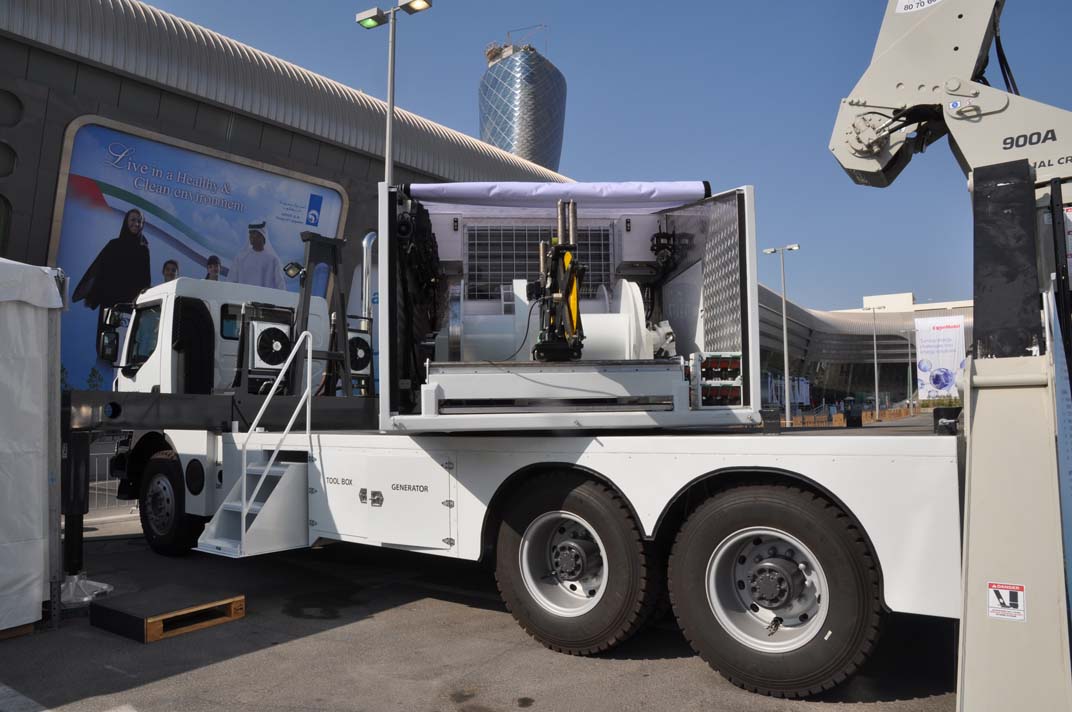

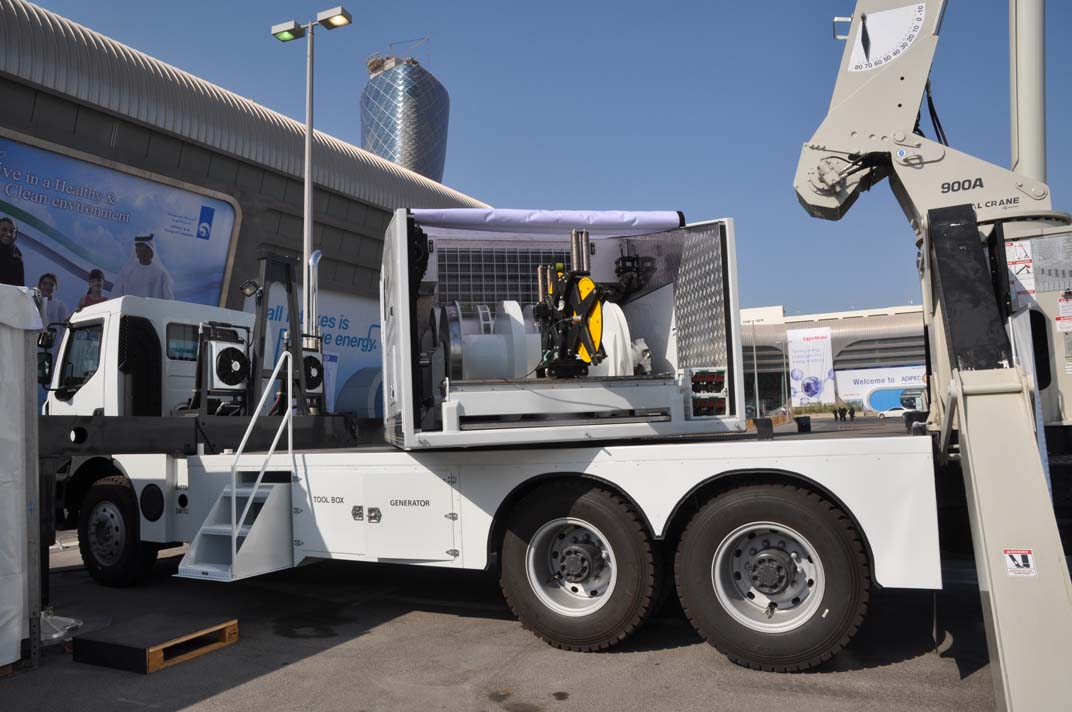

   WIRELINE UNIT

   Carbon steel chassis, 180° rotation

   Rear bench removable with crane includes toolbox, wise and BOP storage

   Tool storage with airbag and drawer for small tools

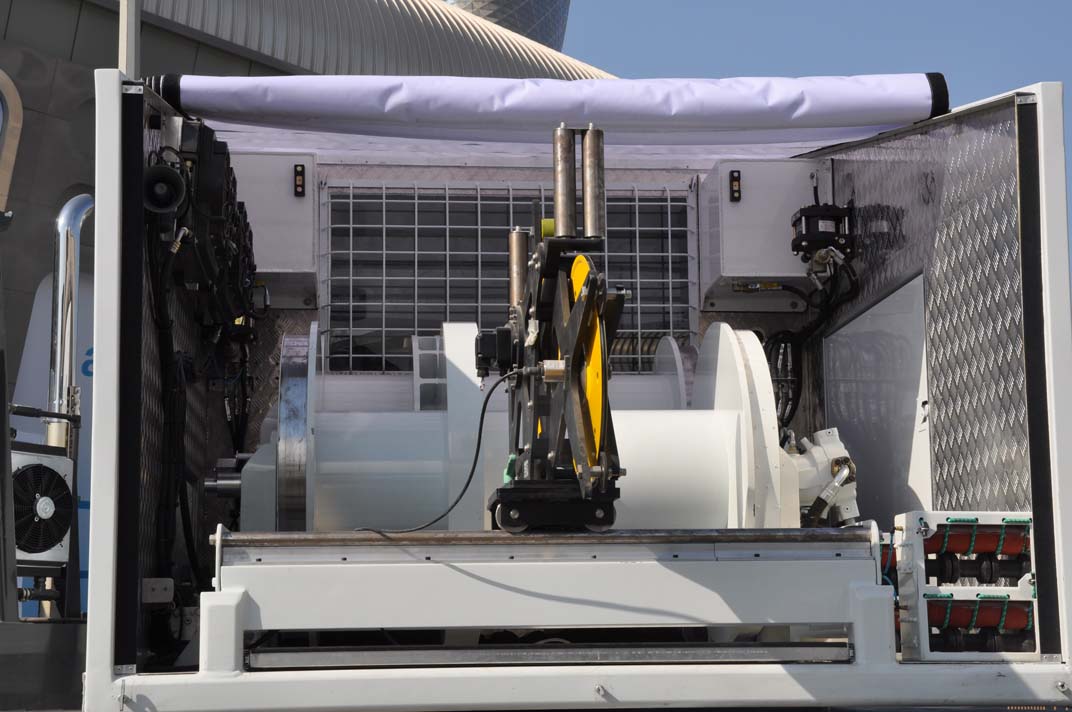

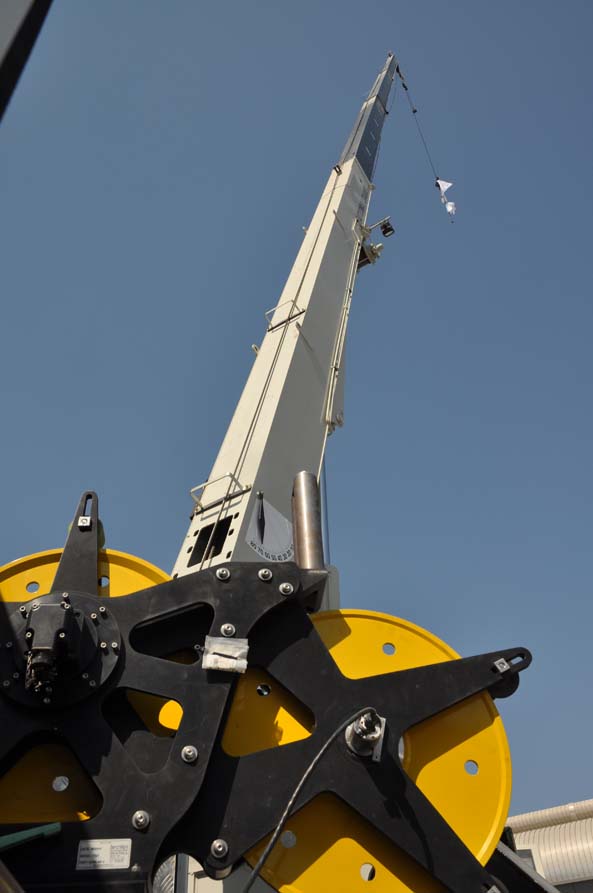

   Drum type - (benchmark)

   Split slickline drum x 3. 0.108" carbon steel 0.125" carbon steel 0.108' stainless steel

   Split e-line drum x 2    5/16" and 7/32"

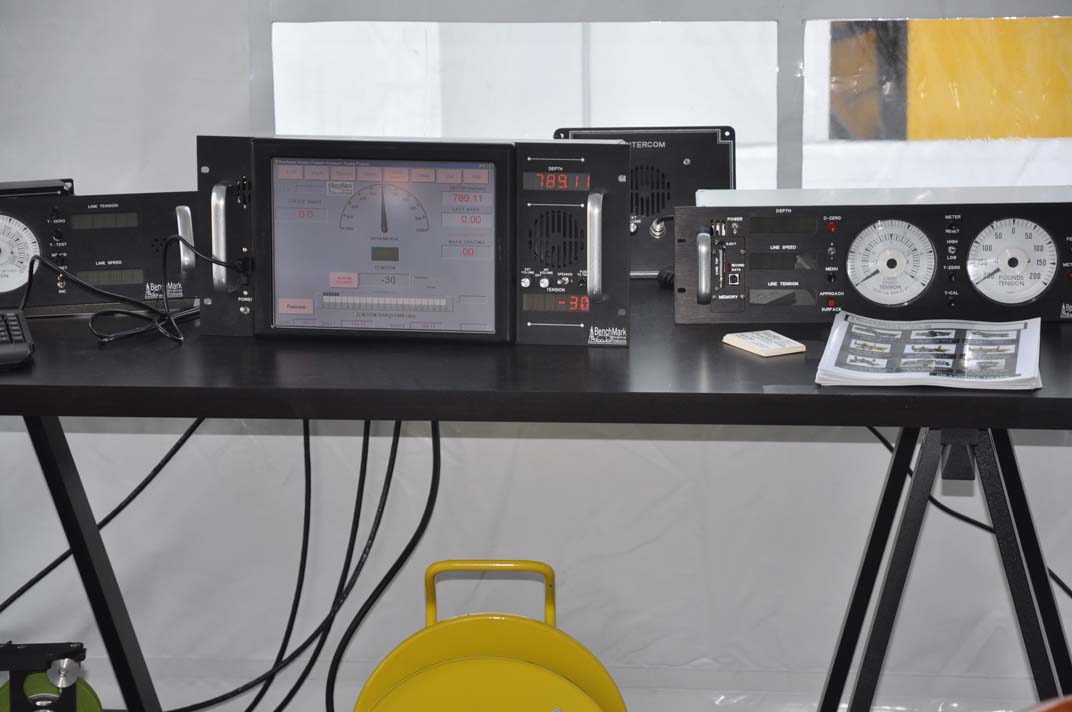

   Depth tension speed measurement - (benchmark system)

   AMS4A099 touchscreen, water proof, zone 2

   Measuring Head - (benchmark)

   AMSA500 mako dual wheel integrated depth and tension for slick line .092 - .160; braided line 3/16" - 5/16"

   Wire Sppler Guide controlled by hydraulic joystick

   Pressure transfucer with reel drum - (benchmark)

   Winch hydraulic drive

   Hydraulic pump driven by truck PTO

   Closed llop hydraulic system, constant slow speed

   Direct drive system

   Hydraulic oil cooler

   Hydraulic Driven Generator

   7kva 240v 50hz output

   *Lubricator support can be fitted
